The Onyx Series combines an asymmetric, faceted design with a unique exposed center bar for integrated color combinations. Optimized strength to weight ratio creates a lightweight and minimal design, while featuring easy release with FullFlexTM Latching. The Loop allows for either fixed web ends for no adjustment or pass-through for free floating pulley action.

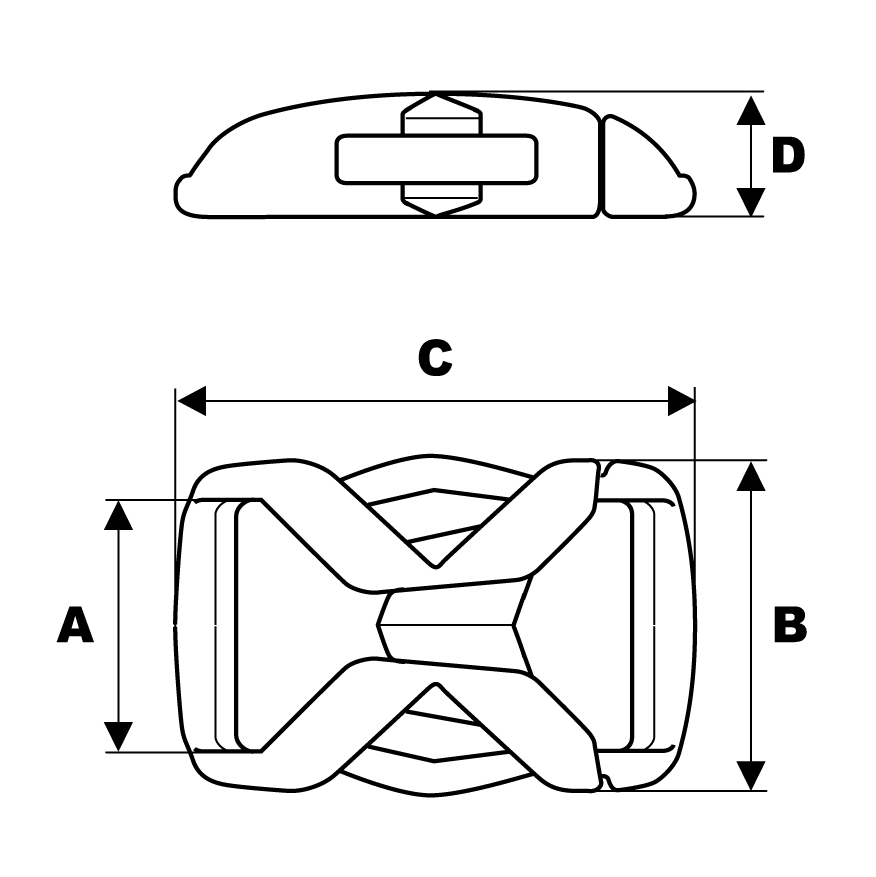

"","mm","in","MATERIAL","COLOR","A","B","C","D"
"Onyx SR 16 Loop (shown w/Latch 406-0010)|406-0000","16mm","5/8in","A","B","16.6","22.9","37.9","10.0"
"Onyx SR 20 Loop (shown w/Latch 406-0110)|406-0100","20mm","3/4in","A","B","20.2","26.9","41.4","10.0"
"Onyx SR 25 Loop (shown w/Latch 406-0210)|406-0200","25mm","1in","A","B","25.8","34.5","47.2","11.4"
"Onyx SR 40 Loop (shown w/Latch 406-0310)|406-0300","40mm","1 1/2in","A","B","38.9","48.4","55.9","12.7"
